Bosch Serie | 4 Chimney extractor hood
Call for Price
The optimum air volume for kitchen of all sizes.
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.
TouchControl – control at your fingertips.
Set the exact power level with a single touch thanks to TouchControl and DirectSelect. It’s easy to operate: simply select the right power level or turn on the lights and away you go.
- Description
Description

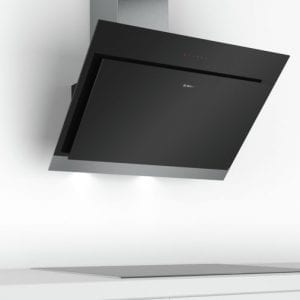

Inclined hood: optimal for keeping an eye on your pots and pans.Inclined hood: optimal for keeping an eye on your pots and pans.
- TouchSelect control: quick touch-control selection of desired settings and light.TouchSelect control: quick touch-control selection of desired settings and light.
- Extraction rate: at 680 m3/h, it quickly ensures optimal kitchen air quality.
- Especially silent: maximal extractor performance with minimal noise
- Energy efficiency A: maximal extractor performance with minimal energy consumption
- Energy Efficiency Class: A*
- Noise max. Normal Level: 57 dB*
- Suitable for ducted or recirculating operation
- In recirculation operation chimless use possible
- For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
- Designed for wall mounted installation
- touch control (3 speed + intensive operation) with Electronic display
- Easy to clean
- Twin channel high performance fan motor

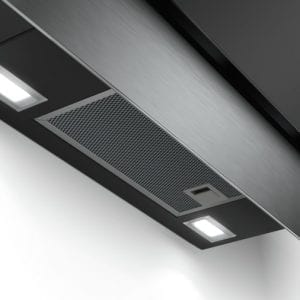

- 2 x 1,5W LED
- Removable metal grease filters, dishwasher safe
- Extraction rate according to DIN/EN 61591 ø 15 cm: max. Normal 420 m³/h Intensive 680 m³/h
- Ducted extraction rate according to DIN/EN 61591max. 420 m³/h
- Maximum extraction 420 m3/h
- Extraction rate exhaust air according to EN 61591:
max. normal use 420 m³/h, intensive 680 m³/h - Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 57 dB(A) re 1 pW (43 dB(A) re 20 µPa sound pressure)
Intensive: 66 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure) - Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Extraction rate in recirculation mode:
Max. normal use: 390 m³/h
Intensive: 560 m³/h - Noise levels in recirculation mode:
Max. normal use: 66 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)
Intensive: 75 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure) - Power rating: 263 W
- Dimensions exhaust air (HxWxD): 929-1199 x 890 x 499 mm
- Dimensions recirculating with CleanAir module (HxWxD):
1119 x 890 x 499 mm – mounting with outer chimney
1189-1459 x 890 x 499 mm – mounting with telescopic chimney - Dimensions recirculating, chimney (HxWxD): 989-1259 x 890 x 499 mm
- Dimensions recirculating, chimless (HxWxD): 453 mm x 890 x 499 mm
